Material Options for CNC Turning and CNC Milling.

Contact us to get more material options and suggestions.

Aluminum	Stainless steel	Mild, Alloy & Tool steel	Plastic	Reinforced Plastic	Other metal
6061-T6	303	Mild Steel 1018	ABS	Garolite G-10	Copper C101
6082	304L	Mild Steel 1045	Polypropylene	Polypropylene (PP) 30%GF	Copper C110
7075-T6	316L	Alloy steel 1215	Nylon 6	Nylon 30%GF	Titanium Grade 1
7020	2205 Duplex	Alloy steel 4130	Delrin (POM-H)	FR-4	Titanium Grade 2
7005	17–4	Alloy steel 4140	Acetal (POM-C)	PMMA (Acrylic)	Invar
5082	15–5	Alloy steel 4340	PVC	PEEK	Inconel 718
5083	416	Tool Steel A2	HDPE		Magnesium AZ31B
5052	420	Tool Steel A3	UHMWPE		Brass C260
5754	430	Tool Steel D2	Polycarbonate		Brass C360
6060	440C	Tool Steel S7	PET		932 Bronze
6063	301	Tool Steel H13	PTFE (Teflon)		954 Bearing Bronze
2014		Tool Steel O1	Acetal [Delrin]		544 Bearing Bronze
2017					Titanium 6Al-4V
2024-T3
3003
A380
MIC6

Surface Finishing Options for CNC Turning and CNC Milling

→As machined
→Ra 3.2μm / Ra 126μin

→This is our standard finish. Parts are machined and deburred, sharp edges are chamfered.

→Smooth machining
→Ra 1.6μm / Ra 63μin

→Smooth machining is like an ‘As machined’ finish but with slightly less evident machine marks. Parts are machined at a lower feed, no hand polishing is applied.

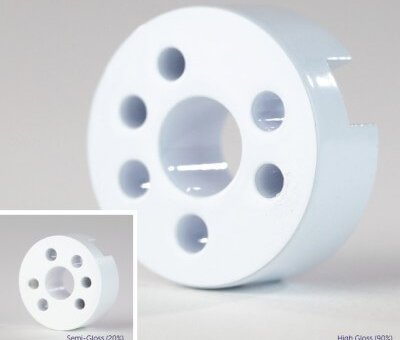

→Powder Coated
→Ra N/A

→Powder coating is a strong, wear-resistant finish that is compatible with all metal materials.

→Mirror Polish
→Ra 0.1μm / Ra 3.94μin

→Powder coating is a strong, wear-resistant finish that is compatible with all metal materials.

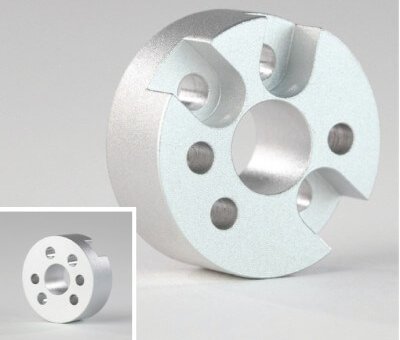

→Bead Blasted
→Ra N/A

→Parts are bead blasted with glass beads which results in a grainy texture.

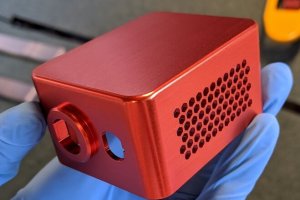

→Brushed + Anodized type II
→(Glossy)

→Parts are brushed and then anodized type II. Ideal for increasing the corrosion resistance of the part. Typically results in a glossy color.
No Bead Blasted implemented.

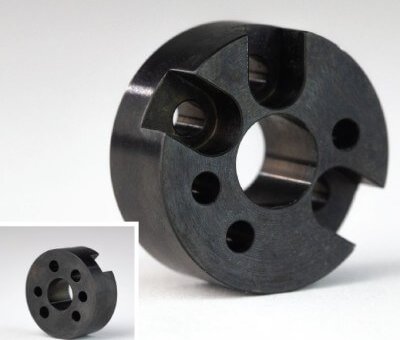

→Black oxide
→Ra N/A

→Black oxide is a conversion coating used to improve corrosion resistance and minimize light reflection.

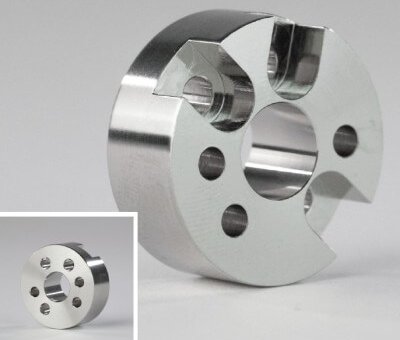

→Electroless nickel plating
→Ra N/A

→Electroless nickel plating can have a matte, semi-bright, or bright finish, For metal and plastic.

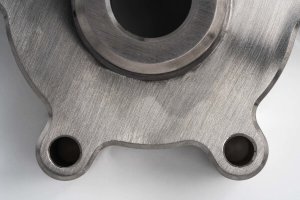

→Brushed
→Ra 1.2μm / Ra 47μin

→Parts are brushed with a #400 – 600 grit. Ideal to reduce the surface roughness of the part.

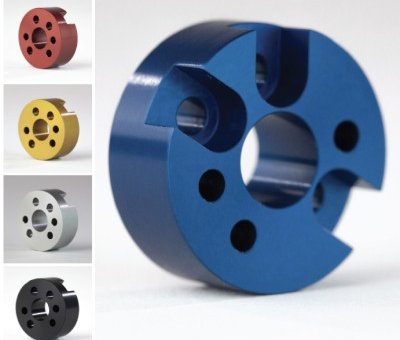

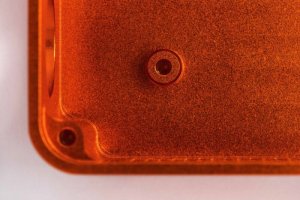

→Bead blasted + Anodized type II
→(Matte)

→Parts are bead blasted and anodized type II.
Results in naturally matte colors. For glossy colors, please select the brushed anodizing option.

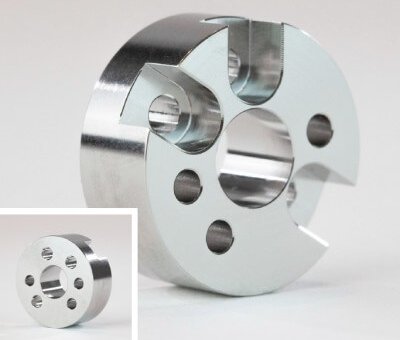

→Brushed + Electropolished
→Ra 0.8μm / Ra 32μin

→Parts are brushed and electropolished. Ideal to reduce the micro-roughness of the part.

→Sharp Edges
→Ra N/A

→Sharp Edges with visible toolmarks

→Polishing
→Ra 0.8μm / Ra 32μin

→Parts are manually polished in multiple directions. Surface is smooth and slightly reflective.

→As machined + Anodized type III
→(Hardcoat)

→Parts are machined and an anodizing type III coating is directly applied to the surface. Ideal to improve corrosion and wear resistance of components.

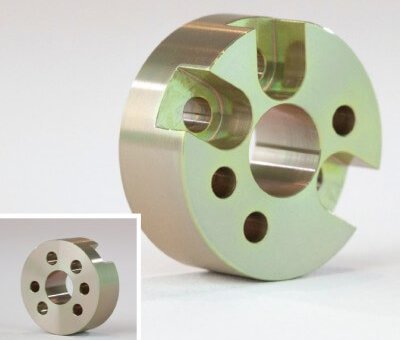

→Chromate conversion coating
→Ra N/A

→Parts are machined and a chromate conversion coating is applied. RoHS compliant.

→Broken Edge
→Ra N/A

→Edges broken with visible toolmarks

Maximum & Minimum part size for CNC turning

		Metric	US
Maximum Dimensions	Diameter	550 mm	21.7 in.
Maximum Dimensions	Length	990 mm	39 in.
Minimum Dimensions	Diameter	2 mm	0.08 in.
	Length	1.27 mm	0.05 in.
	Wall Thickness	0.51mm	0.020 in.
	Angle	30°	30°
Tolerances		0.002mm	0.00008 in.

Maximum part size for CNC Milling

	Metric	US
3-axis	2000 x 1500 x 1000 mm	78.7 x 59.0 x 39.3 in
4-axis	1500 x 800 x 600 mm	59.0 x 31.4 x 23.6 in
3+2-axis	1500 x 800 x 600 mm	59.0 x 31.4 x 23.6 in
5-axis	650 x 650 x 300 mm	25.5 x 25.5 x 11.8 in
Minimum Feature Size	Ø 0.50 mm	Ø 0.019 in
